Vehicle Compatibility and Fitment Parameters

Universal low-profile architecture engineered specifically to slide beneath front driver or passenger seats across compact and mid-size vehicles. Tested for zero-clearance fitment beneath seats of Toyota Allion, Premio, Axio, Fielder, Corolla Cross, Yaris, Honda Vezel, Fit, Grace, and Nissan X-Trail.

Package Contents

● 1 x GELONG 600W Active Underseat Subwoofer Enclosure

● 1 x Dash-Mountable Remote Bass Volume Level Control Knob with Connecting Wire

● 1 x High-Level Speaker Signal Input Wiring Pigtail

● 1 x Complete Mounting Bracket Hardware Pack with Ground Screws

● 1 x User & Installation Wiring Manual

Installation and Electrical Specifications

12V DC automotive battery connection. Requires dedicated 10 AWG to 12 AWG primary power line secured with an inline 20A fuse installed within 30 cm of the positive battery terminal. Features intelligent High-Level Speaker Signal Sensing for automatic power activation when connecting to factory head units lacking a remote (REM) turn-on lead.

Detailed Engineering and Functional Overview

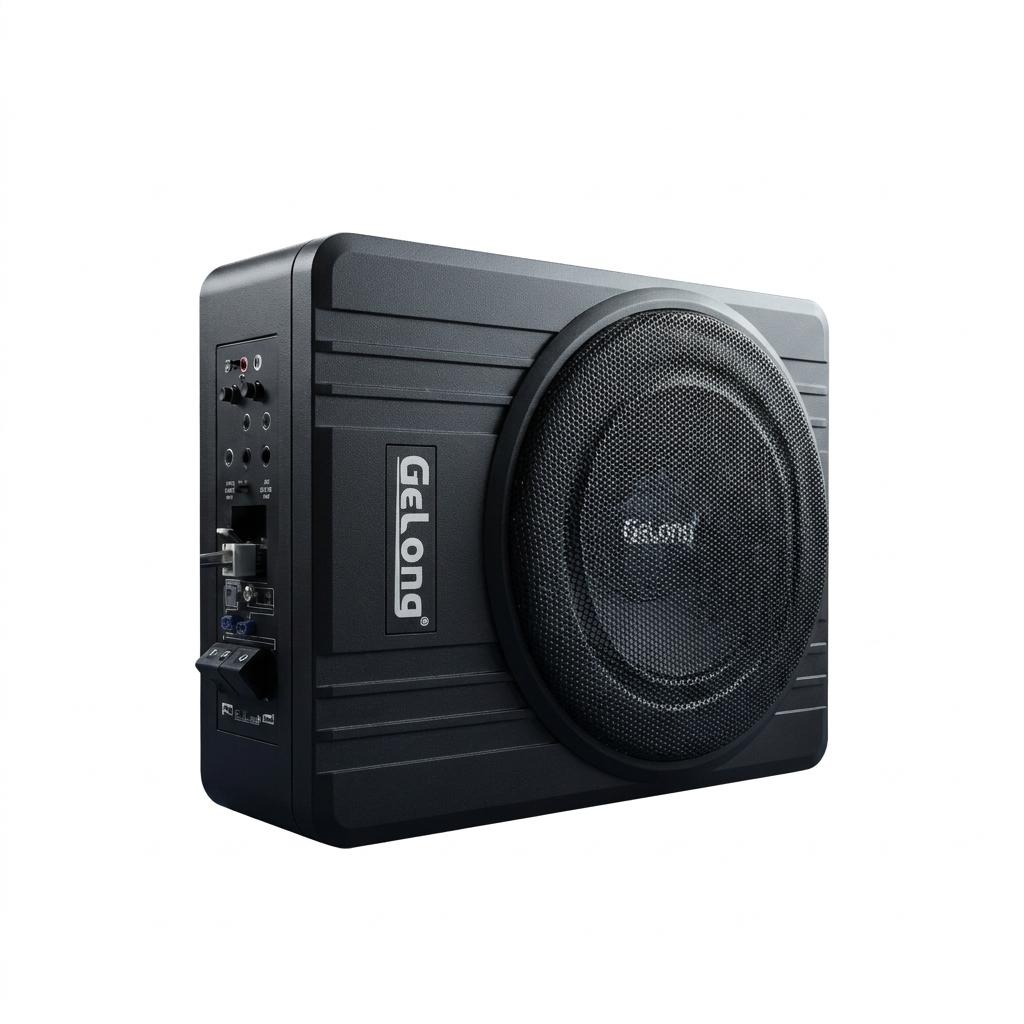

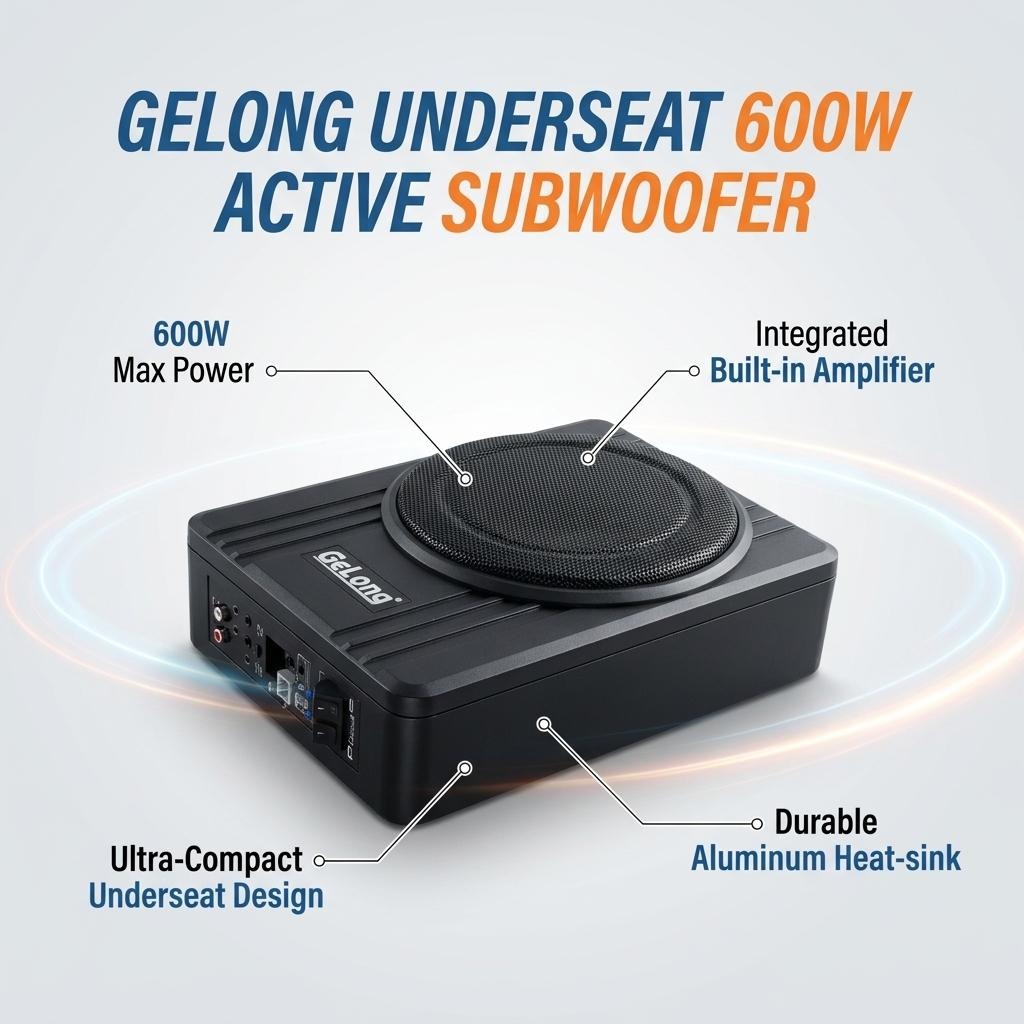

The GELONG 600W Ultra-Slim Active Underseat Subwoofer delivers impactful, low-frequency sound reinforcement without sacrificing valuable trunk and cargo space. Factory car door speakers installed in Japanese vehicles typically suffer from thin, hollow acoustic playback, struggling to reproduce frequencies below 80 Hz due to small plastic baffles and minimal driving power. The GELONG active subwoofer resolves this limitation by delivering rich, dynamic bass frequencies across the 30 Hz to 150 Hz spectrum directly through the floor pan of the cabin. Housed within a rigid, resonance-damped sealed enclosure cast entirely from solid aluminum alloy, the GELONG subwoofer effectively dissipates heat while resisting internal acoustic standing waves. The built-in high-current Class-A/B mono power amplifier drives an internally reinforced woofer cone, producing tight, punchy low-frequency performance capable of handling modern hip-hop, electronic music, and Bengali contemporary instrumentation. Featuring both low-level RCA inputs and high-level speaker wire inputs, the GELONG connects effortlessly to both aftermarket Android players and factory OEM stereos. The included dash-mounted rotary bass remote puts precise bass level adjustments at your fingertips, letting you adjust volume instantly depending on whether you are listening to talk radio or high-energy music.

Key Features and Commercial Benefits

● Compact, ultra-slim profile slips directly under vehicle front seats, preserving trunk space for luggage and CNG/LPG fuel cylinders.

● Heavy-duty cast aluminum sealed enclosure eliminates structural rattling while dissipating amplifier thermal loads.

● Delivers 600W of peak power output, filling vehicle cabins with deep, impactful bass.

● High-Level Auto Turn-On functionality enables seamless integration into original factory car stereos lacking dedicated remote wires.

● Includes a cockpit-mountable wired rotary remote knob for on-the-fly bass level adjustments from the driver's seat.

Technical Specifications

Step-by-Step Operating Instructions

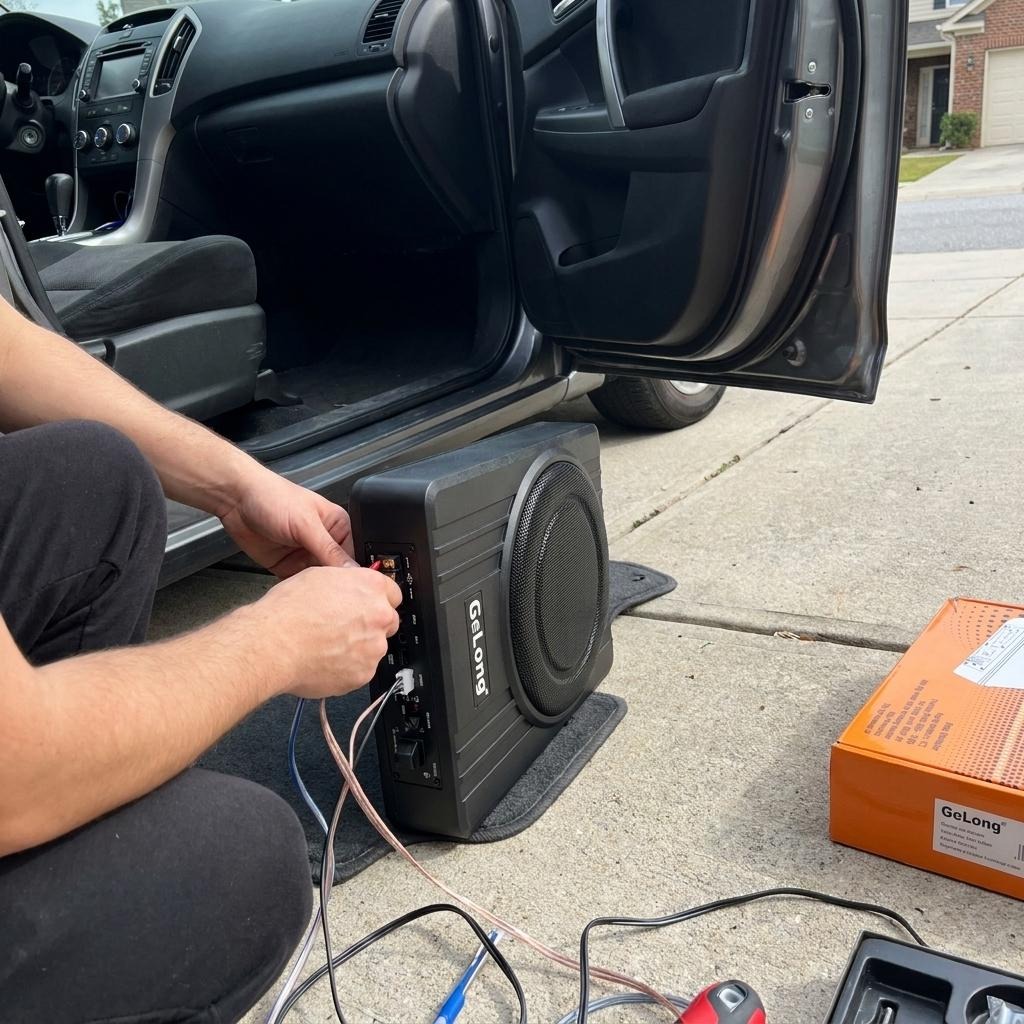

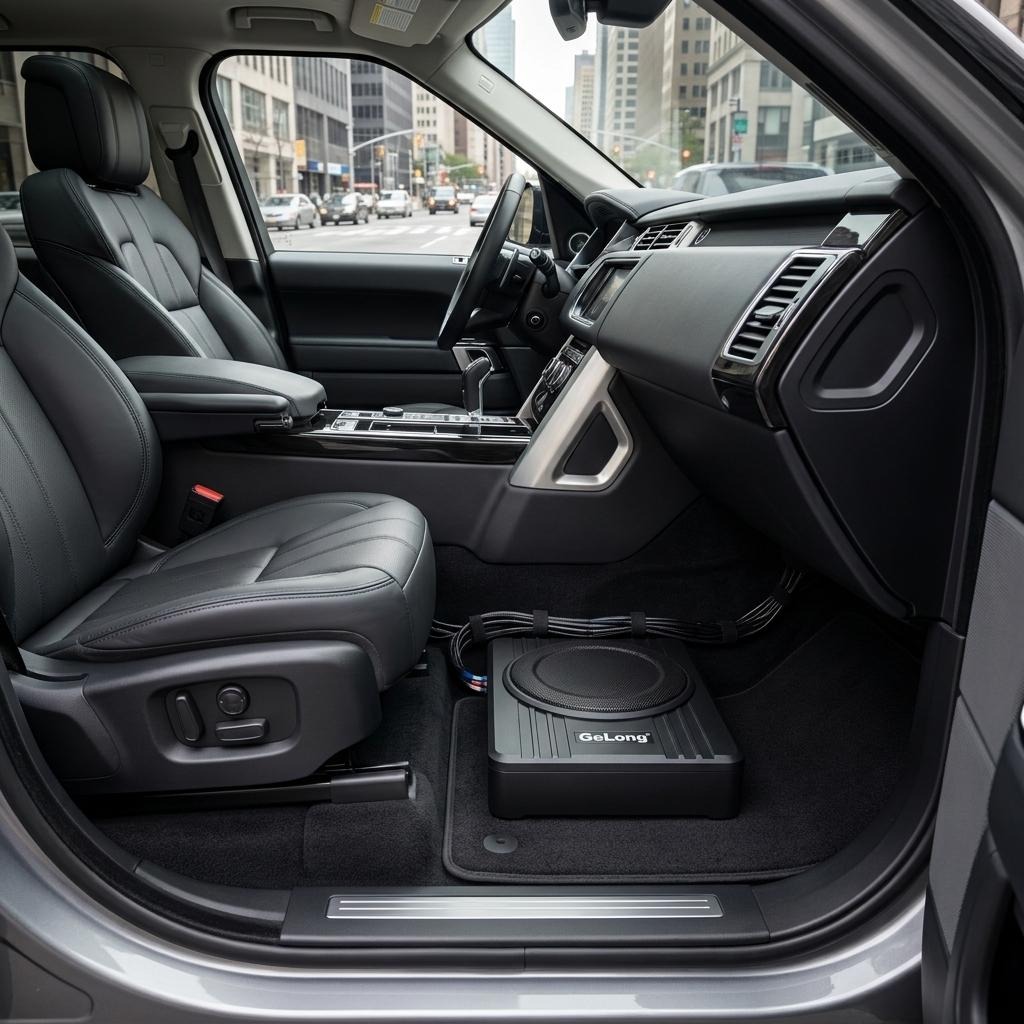

1. Position the subwoofer flat on the vehicle floor pan beneath either the driver or passenger seat, ensuring the seat slides along its rails without making contact with the speaker housing.

2. Route a 10 AWG red power cable directly through the engine firewall grommet to the positive (+) battery terminal, installing an inline fuse holder within 300 mm of the battery terminal.

3. Secure the heavy black negative (-) ground lead to an unpainted, clean metal bolt on the vehicle chassis floor.

4. Connect the signal lines: use RCA interconnect cables if installing alongside an aftermarket head unit, or tap into the rear door speaker wires using the supplied high-level wiring harness.

5. Route the wired remote knob to an accessible location near the center console and plug it into the subwoofer controller jack.

6. Power on the car stereo at 70% volume, set the Low Pass Filter (LPF) knob to approximately 80 Hz, and adjust the input gain dial until the low-frequency output blends seamlessly with your front speakers without distortion.
