Vehicle Compatibility and Fitment Parameters

Universal 9-inch and 10.1-inch form factor compatible with aftermarket dashboard installation frames across popular Bangladeshi models: Toyota Premio/Allion (260 series), Corolla Axio/Fielder (141/161 series), Noah, Voxy, Probox, Succeed, Honda Vezel, and Nissan X-Trail.

Package Contents

● 1 x Genuine Nakamichi NAM5240 Touchscreen Android Head Unit

● 1 x Universal ISO Power & Speaker Wiring Harness

● 1 x External High-Gain GPS Antenna Module

● 2 x Rear-Panel USB Extension Leads

● 1 x RCA Audio/Video Input-Output Harness (including dedicated Subwoofer Out)

● 1 x Reverse Camera Video Input Cable with Wi-Fi/BT Antenna Leads

● 1 x Metal Side Mounting Bracket Pack

● 1 x Nakamichi Warranty Card & Detailed User Manual

Installation and Electrical Specifications

Operates on standard 14.4V DC automotive power (10.5V to 16.0V operating range). The unit features a slim 44 mm installation chassis, providing generous clearance for dashboard wiring looms. Compatible with factory steering wheel control wiring (analog resistive Key 1 / Key 2 interfaces).

Detailed Engineering and Functional Overview

The Nakamichi NAM5240 delivers Nakamichi's acoustic engineering heritage in an accessible in-dash Android media receiver. Designed to replace outdated Japanese-language auction head units, the NAM5240 runs an optimized NK Android environment powered by 2GB of system RAM and 32GB of onboard storage, delivering responsive performance for daily driving and media apps.

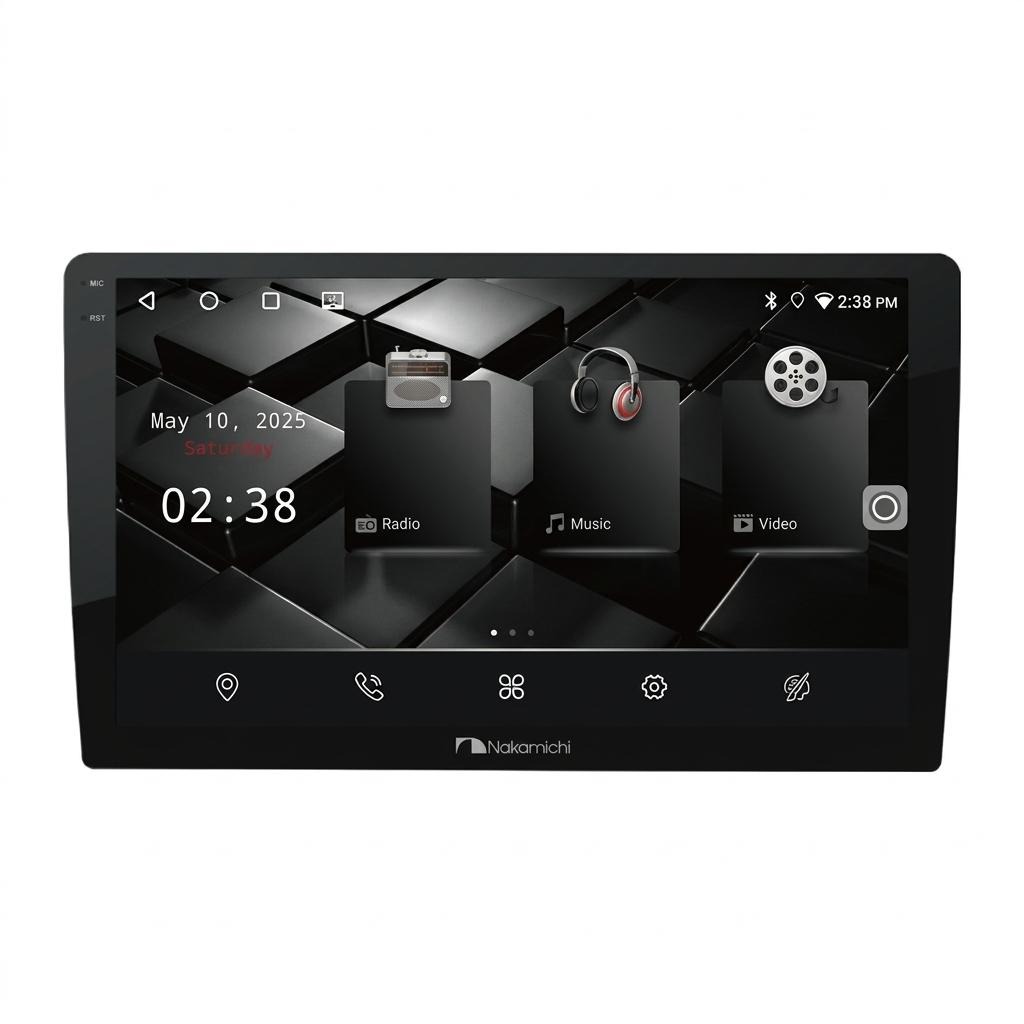

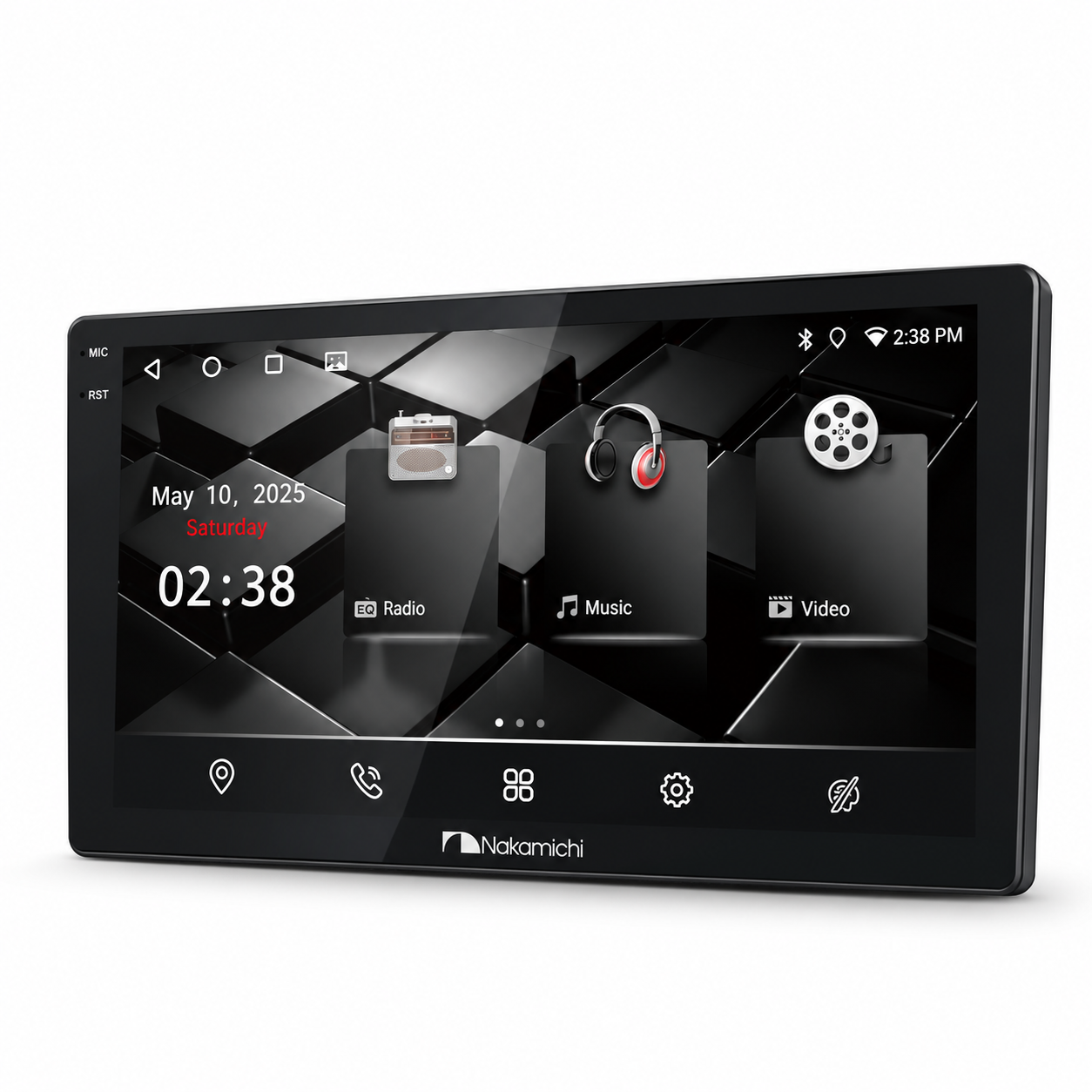

The player features a bright 9.0-inch capacitive IPS touchscreen (1280x720 resolution, 500 nits brightness) that maintains legibility under bright sunlight. Audio output is driven by a built-in 4x50W MOSFET power amplifier paired with Nakamichi's dedicated audio processing suite, which includes a 12-band equalizer with 10 factory presets and an independent subwoofer output level control.

The system supports uncompressed high-resolution audio formats—including FLAC, WAV, and APE—alongside 1080P video playback via USB. Built-in Bluetooth 4.2 handles hands-free calls and wireless music streaming, while PhoneLink enables screen mirroring for both iOS and Android smartphones.

Key Features and Commercial Benefits

● Nakamichi audio processing delivers noticeably cleaner sound than unbranded Android players.

● Bright 9.0-inch HD IPS display (500 nits) ensures clear map visibility in direct daylight.

● 12-band equalizer with 10 presets and dedicated subwoofer output control.

● PhoneLink smartphone integration enables two-way screen mirroring for Android and iOS.

● Shallow 44 mm chassis depth simplifies installation in crowded dashboard spaces.

Technical Specifications

Step-by-Step Operating Instructions

1. Disconnect the vehicle's negative battery terminal before starting dashboard installation.

2. Mount the NAM5240 chassis into the vehicle-specific fascia panel using the provided hardware brackets.

3. Connect the ISO power harness, route the GPS antenna to the base of the windshield, and guide the USB extension cables into the glove compartment. Reconnect the battery terminal and turn the ignition switch to ACC to power on the system.

4. Open Bluetooth settings on the smartphone, pair with "Nakamichi", and synchronize phone contacts for hands-free calling.

5. Open the "EQ" app to adjust equalizer bands and set the preferred subwoofer output levels.
