Vehicle Compatibility and Fitment Parameters

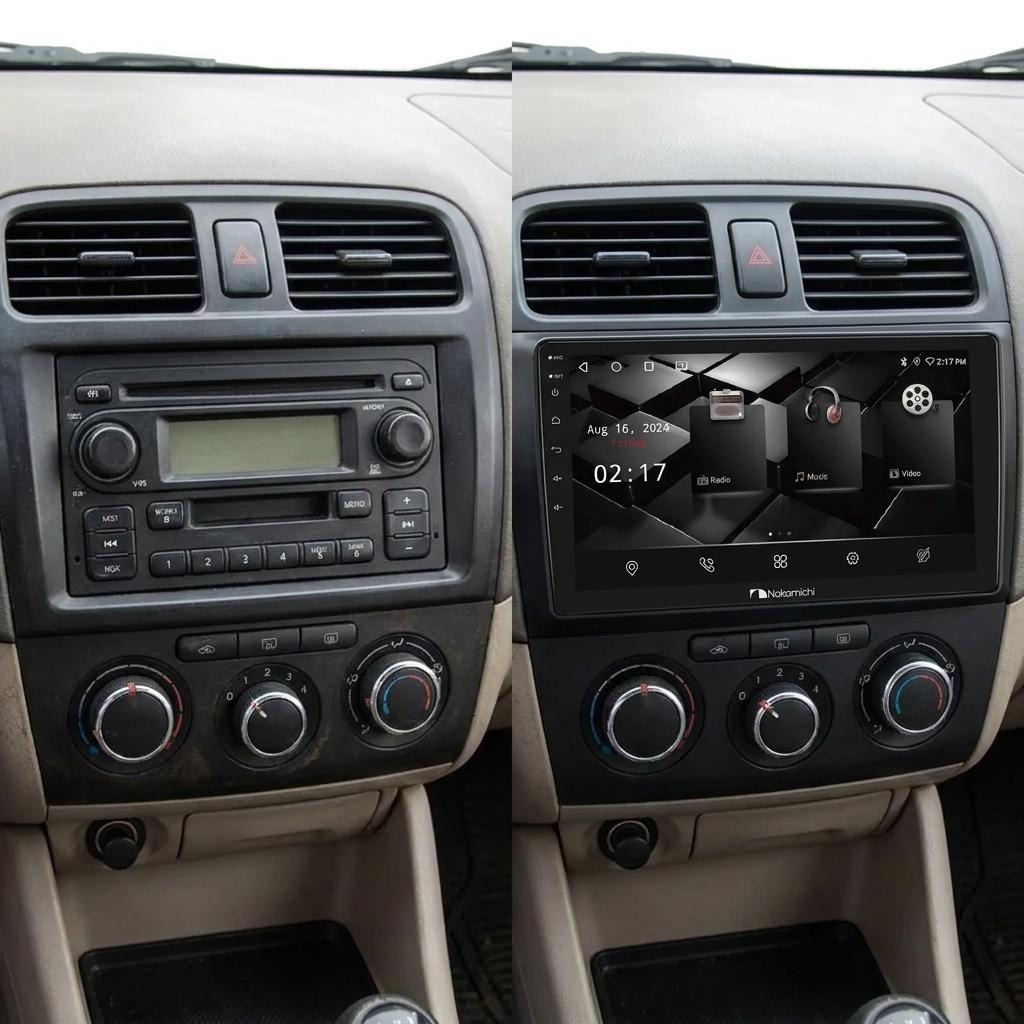

Universal ISO double-DIN form factor compatible with model-specific dashboard fascia frames. Engineered for popular vehicles in Bangladesh, including Toyota Premio, Allion, Axio, Fielder, Noah, Voxy, Honda Vezel, Fit, Grace, and Nissan X-Trail.

Package Contents

● 1 x Nakamichi NAM5710 MR 4GB+64GB Touchscreen Head Unit

● 1 x Full 360-Degree Panoramic Camera Input Interface Cable

● 1 x High-Precision External GPS Antenna Module

● 2 x Heavy-Duty USB Extension Cable Leads

● 1 x Multi-Pin RCA Input/Output Harness (including dedicated Subwoofer Out)

● 1 x Universal ISO Power & Speaker Wiring Loom

● 1 x Nakamichi Warranty Card & Operating Manual

Installation and Electrical Specifications

12V DC operating standard (10.5V to 16.0V DC range). The internal audio stage performs best when connected through a clean, fused 15A ignition circuit. Native support is included for analog resistive steering wheel controls (Key 1 / Key 2).

Detailed Engineering and Functional Overview

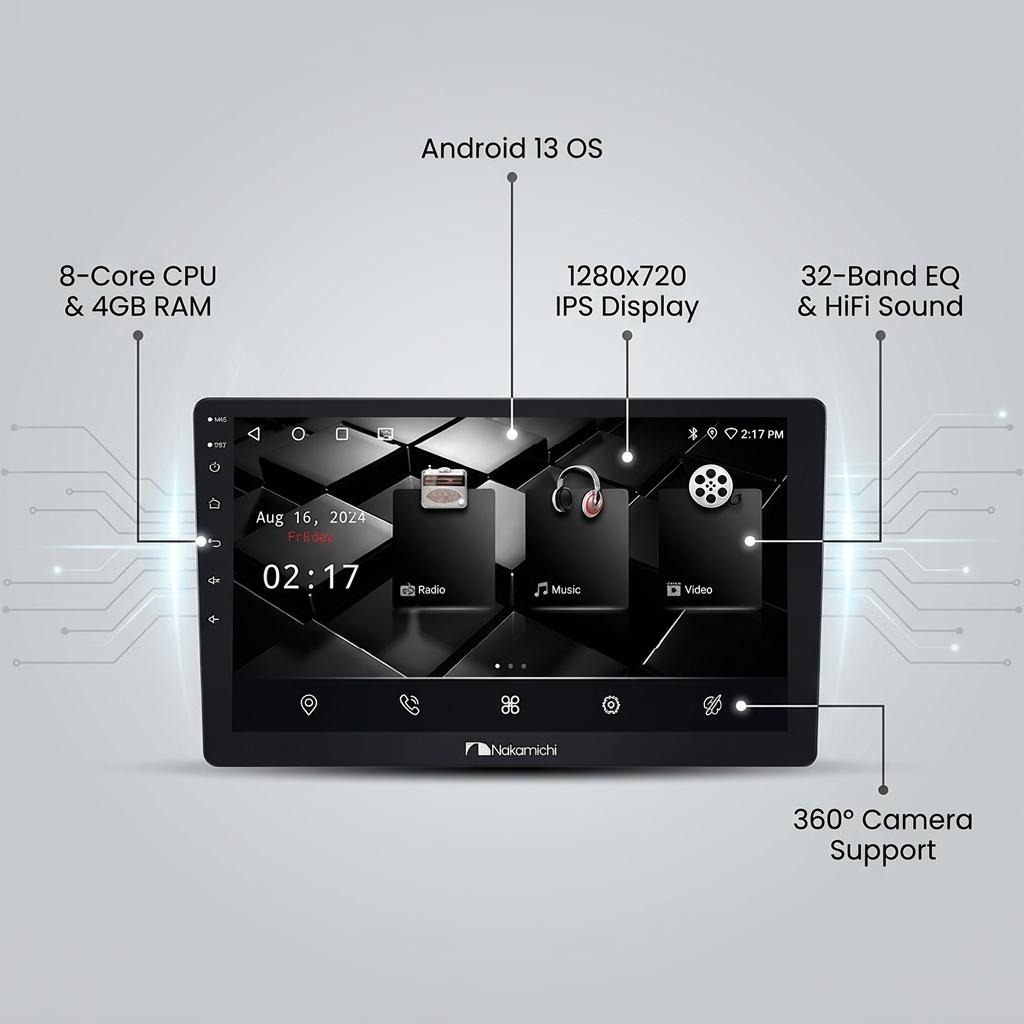

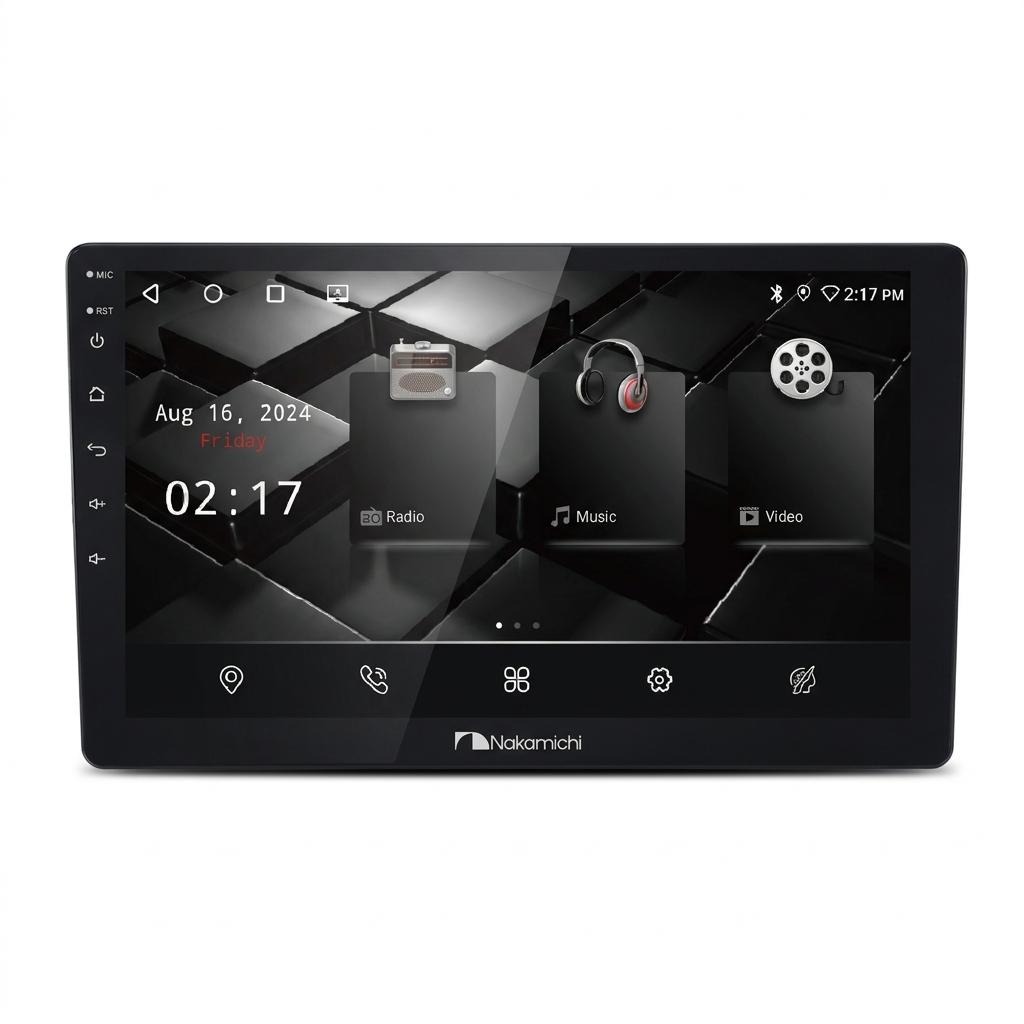

The Nakamichi NAM5710 MR is an audiophile-grade smart Android infotainment head unit engineered for discerning car owners. Powered by a 64-bit octa-core processor paired with 4GB of RAM and 64GB of flash storage, the NAM5710 MR delivers fast app load times and smooth split-screen multitasking, allowing navigation and media apps to run side-by-side without hesitation.

The display utilizes a 2.5D curved tempered-glass IPS panel (1280x720 HD resolution) outputting 500 nits of brightness, ensuring sharp colors and wide viewing angles in daylight. Acoustic performance is powered by an integrated 32-Band professional digital sound processor (DSP), providing precise control over parametric frequency bands, time alignment delay across all seating positions, and electronic crossover points for door speakers and subwoofers. Smartphone integration includes built-in Wireless Apple CarPlay and Wireless Android Auto. The system also includes dedicated hardware decoding for 360-degree panoramic surround-view cameras, providing complete obstacle visibility during tight parking maneuvers in congested areas.

Key Features and Commercial Benefits

● Fast octa-core processor with 4GB RAM ensures smooth performance across all applications.

● Professional 32-band DSP audio processor with time alignment delivers exceptional sound staging.

● Hardware support for 360-degree panoramic camera systems simplifies parking in tight spaces.

● Integrated Wireless Apple CarPlay and Android Auto deliver wire-free smartphone synchronization.

● Built-in 4x50W MOSFET amplifier delivers clean, dynamic power directly to car speakers.

Technical Specifications

Step-by-Step Operating Instructions

1. Disconnect the vehicle's battery terminal before beginning dashboard installation. 2. Mount the NAM5710 MR securely into the vehicle dashboard opening using the appropriate fascia adapter frame.

3. Plug in the GPS antenna, route the dual USB leads into the glove compartment, and connect the primary ISO harness to the vehicle wiring.

4. If installing 360-degree cameras, connect the four camera video lines into the corresponding multi-camera harness connectors.

5. Reconnect the battery terminal and turn the ignition switch to the ACC position.

6. Open your phone's Wi-Fi and Bluetooth settings, connect to the head unit, and allow the system to launch Wireless CarPlay or Android Auto.

7. Access the "DSP" sound menu to configure the 32-band equalizer and adjust audio time-delay settings to match your seating position.
